Vmware Cluster Slot Size Calculation

Vmware Cluster Slot Size Calculation Calculator

Recently I have been asked by my customers and also blog readers 🙂 about VMware HA Admission Control. As this topic is often misunderstood, this post covers some information about this important feature of VMware vSphere HA.

Welcome to the latest version of my cluster calculator! You can type in the field of the online table and the online table will calculate how many hosts you need. You can make the calculation for 2 different setups side by side. Take note that all values in black are VARIABLES (About 20 variables can be adjusted). Changing any of them will change the recommendations in the top and throughout. The slot has two parts, the CPU component and the memory component. Each of them has its own calculation. If there are no virtual machine resource reservations in the cluster, then the slot size (for ESXi 5 at least) is 32 Mhz for CPU and 0 MBs + overhead for memory. (I’ve used 80 MBs as my memory overhead in the examples). A slot represents the minimum CPU and memory resources that are required to support any powered-on virtual machine in the cluster. With the failover level policy in place, HA uses the following slot calculations to control virtual machine migration within the cluster: Calculate the slot size from CPU and memory reservations. The VMware High Availability admission control policy “Host failures cluster tolerates” calculates a slot size to determine the maximum amount of virtual machines active in the cluster without violating failover capacity.

In this post you will find answers for the following questions:

What is Admission Control?
What is and how to check slote size?
When and which Admission Control Policy should I use? How to solve Insufficient Resources for HA failover?

Admission control is used to ensure that sufficient resources are available in a cluster to provide failover protection and to ensure that virtual machine resource reservations are respected. There are three Admission control policies:

Percentage of Cluster Resources Reserved Admission Control Policy
Host Failures Cluster Tolerates Admission Control Policy

It's very important to mention that Percentage of Cluster Resources Reserved and Host Failures Cluster Tolerates are based on CPU and memory reservations at Virtual Machine (VM) level (it ignores resource pools reservation settings). But only? Nope, also overhead reservation is taken into considerations. So the formula is:

Configured Reservation for VM + Overhead Reservation

Overhead Reservation depends on VM configuration and usage (for example: RAM, devices etc). It means that for a large VMs with not configured reservation (equals 0), there is a noticeable Overhead Reservation!

Specify Failover Hosts

The easiest option (it does not mean the best 🙂 ) of Admission Control. vSphere HA attempts to restart its virtual machines on one of the specified failover hosts.

Host Failures Cluster Tolerates

With the Host Failures Cluster Tolerates admission control policy, vSphere HA uses slot to ensure that a specified number of hosts can fail and sufficient resources remain in the cluster to fail over all the virtual machines from those hosts.

Slot is a logical representation of CPU and memory. Depending on vSphere version, the default slot size is 0 MB of RAM and 256 MHz CPU (4.1 and earlier) or 0 MB of RAM and 32Mhz (5.0 and later).

The admission control is performed by VMware HA with the following steps:

Calculates the slot size (based on powered-on VMs and selections the largest value).
Determines how many slots each host in the cluster can hold.
Determines the Current Failover Capacity of the cluster.
Determines whether the Current Failover Capacity is less than the Configured Failover Capacity.

So let's make an example. As shown on the above figure, we have three ESXi hosts each with a different amount of available CPU and memory resources:

ESXi1 - 9GB of RAM and 9Ghz of CPU
ESXi2 - 6GB of RAM and 9Ghz of CPU
ESXi3 - 6GB of RAM and 6Ghz of CPU

There are five powered-on VMs:

VM1 and VM2 - 1GB of RAM and 2GHz of CPU
VM3 - 2GB of RAM and 1GHz of CPU
VM4 and VM5 - 1GB of RAM and 1GHz of CPU

As mentioned earlier, the slot size is the largest value so in this example: the slot size is 2GHz of CPU and 2GB of memory.

So how many slots are available per hosts?

ESXi1 - 3 slots
ESXi2 - 3 slots
ESXi3 - 4 slots

If ESXi3 host fails, we have available 6 slots (3+3) so sufficient resources are available in a cluster to provide failover protection (one slot available yet to create).

Since vSphere 5.x, it is possible to configure the default slot size via Web Client:

If you use Standard Client or vSphere 4.x, you need to change some advanced parameters such as das.slotmeminmb and das.slotcpuinmhz. For more information please follow VMware KB here.

Percentage of Cluster Resources Reserved

The Percentage of Cluster Resources Reserved works different - vSphere HA ensures that a specified percentage of aggregate CPU and memory is reserved for failover.

The admission control is performed by VMware HA with the following steps:

Calculates the total resource requirement for all powered on machines in the cluster.
Calculates the total host resources available for the virtual machines.
Calculates the current CPU and Memory failover capacity for the cluster (specified by administrator).
Determines if either the current CPU failover or current memory failover is less than the corresponding failover capacity.

As shown on the above figure, there are five VMs and three ESXi hosts and the total VMs requirements for the powered-on VMs is 6GB of RAM and 7GHz of CPU. To calculate the Current CPU Failover Capacity we use the following formula:

(Total host resources - Total VMs requirements) / Total host resources

so CPU: (24-7) / 24 = 70% and Memory: (21-6) / 21 = 71%

If you specify 33% CPU and Memory Failover Capacity, you have around 35% of resource available for new VMs yet 🙂

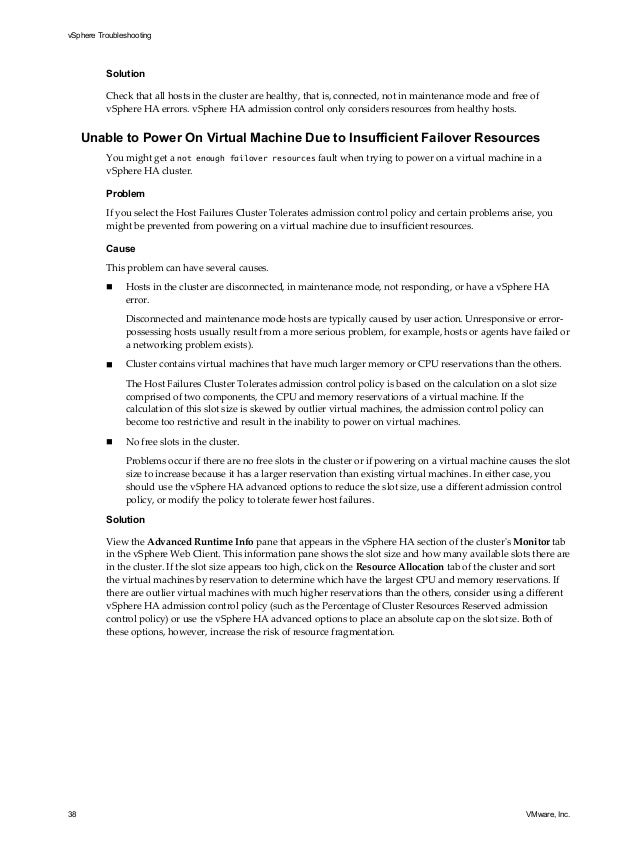

Insufficient Resources for HA failover

Sometimes you can get the following error during configuring vSphere HA with Admission Control enabled:

Insufficient Resources for HA failover

In most of all cases, the above error can happen when you configure Host Failures Cluster Tolerates Admission Control policy. Why? For example you have a large VM (with large reservation so slot size is also large) and when vSphere HA calculates powered on VMs and available slots on all ESXi hosts, it can be a situation when sufficient resources are not available in a cluster to provide failover protection. To solve this problem you should revise the VMs reservations or reconfigure Admission Control to use the Percentage of Cluster Resources Reserved policy.

When and which Admission Control Policy should I use?

Generally I use the Percentage of Cluster Resources Reserved policy because it's much simpler and more flexible than Host Failures Cluster Tolerates Admission Control policy. Of course, you have to remember that when you add or remove ESXi hosts from your cluster, you need to reconfigure percentages. Also if you have an unbalanced vSphere Cluster you should use the Percentage of Cluster Resources Reserved policy.

Conclusion

I hope that Admission Control is understandable for you now 🙂 For more information (much deeper) please follow a fantastic book written by Duncan Epping: VMware vSphere 5.1 Clustering Deepdive 🙂

By Duncan Epping, Principal Architect, VMware

Yesterday I received a question on twitter:

Hi, to settle an argument in the office, if no reserves are in place, does number of vCPU’s affect slot size in vSphere 4? Thx 🙂

First of all, what is a slot? The availability guide explains it as follows

A slot is a logical representation of the memory and CPU resources that satisfy the requirements for any powered-on virtual machine in the cluster.

In other words a slot is the worst case CPU and Memory reservation scenario for any given virtual machine in a cluster. This slot is used when Admission Control is enabled and “Host Failures Tolerates” has been selected as the admission control policy. The total amount of available resources in the cluster will be divided by the slot size and that dictates how many VMs can be powered on without violating availability constraints. Meaning that it will guarantee that every powered on virtual machine can be failed over.

As said this slot is dictated by the worst case reservation for CPU and Memory. Prior to vSphere 4.0 we used the number of vCPUs to determine the slotsize for CPU as well. But we do not use vCPUs anymore to determine the slot size for CPU. The slotsize for CPU is determined by the highest reservation or 256MHz (vSphere 4.x and prior) / 32MHz (vSphere 5) if no reservation is set.

However, vCPUs can have an impact on your slot… it can have an impact on your memory slotsize. If no reservation is set anywhere HA will use the highest Memory Overhead in your cluster as the slot size for memory. This is where the amount of vCPUs come in to play, the more vCPUs you add to a virtual machine the higher will your memory overhead be.
